Key Features
Full-Constellation Tracking
Featuring 1598 channels for full constellation tracking, Y1 can deliver reliable centimeter-level accuracy positioning. Benefiting from the strong signal tracking and advanced RTK algorithm, Y1 shows stable & high fixed rate even in harsh environments.

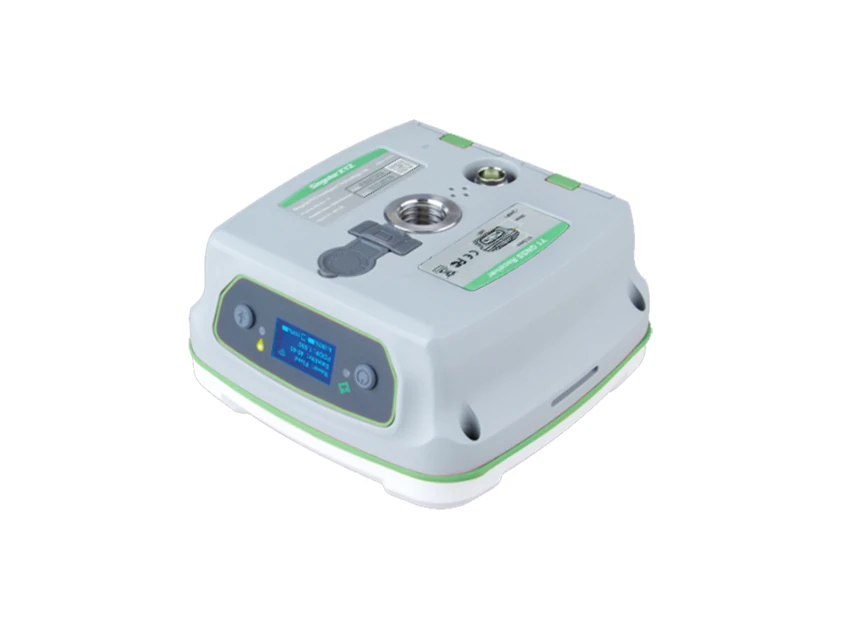

Flexible Communication
Integrated with 4G/UHF/WiFi/Bluetooth/USB/serial port, you can flexibly select the way you need for communication. The enhanced UHF can achieve up to 15km working range with 2W power, reducing your burden without the need of external radio.
60° Tilt IMU
The built-in IMU module supports up to 60° tilt surveying while keeping the accuracy within ±2.5cm.
Additional Benefits

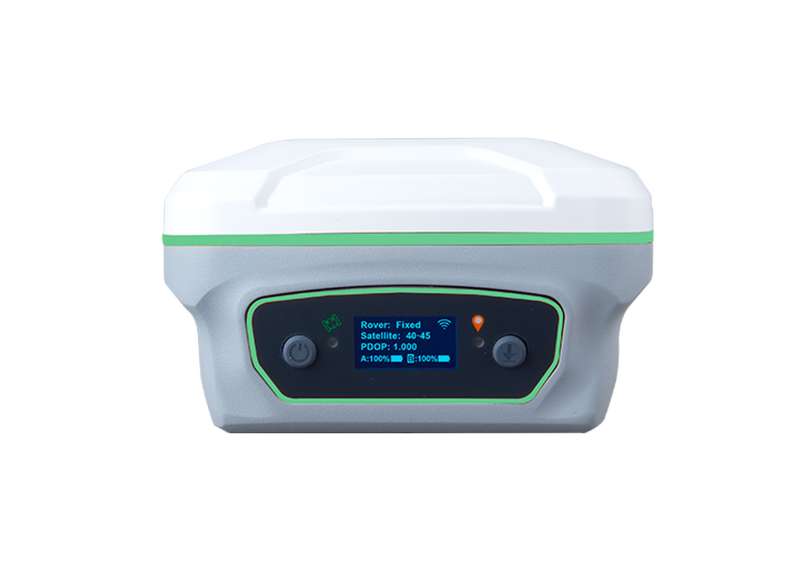

OLED & Web UI
Through the OLED display, functional buttons and indicators, you can directly perform status checking and configuration of Y1. Meanwhile, users also can easily configure work modes, download data, upgrade firmware and check device status via web UI after WiFi connection.

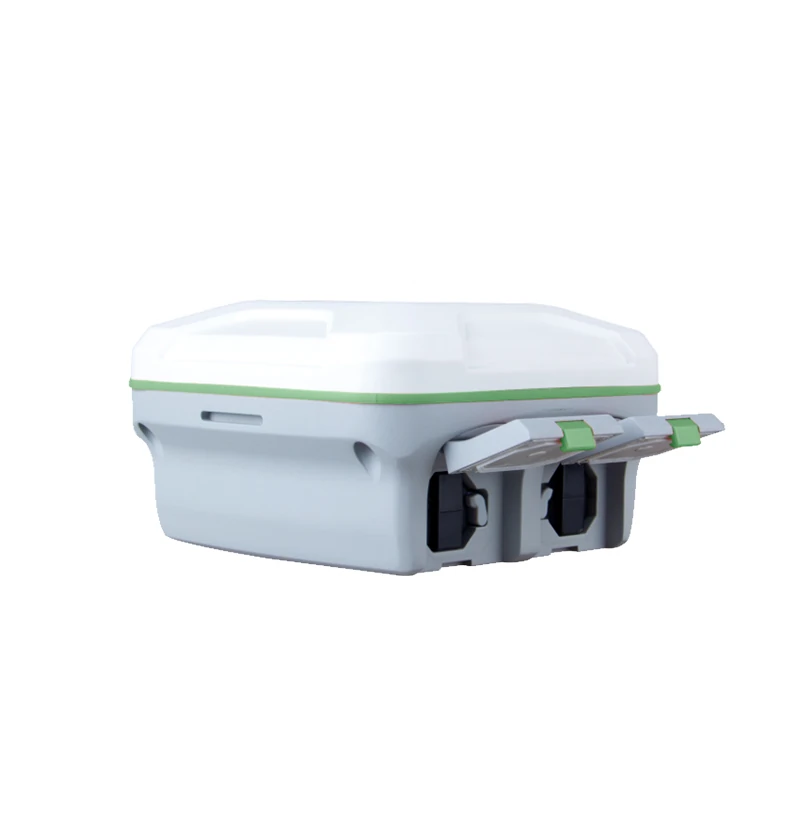

6600mAh Batteries
Hot swap batteries with 6600mAh large capacity support more than 12hrs working time and less than 3hrs charging time.
Rugged Housing
With IP67 waterproof & dustproof design and magnesium-aluminum alloy housing, Y1 is not afraid of harsh working environments.
Software & Platform

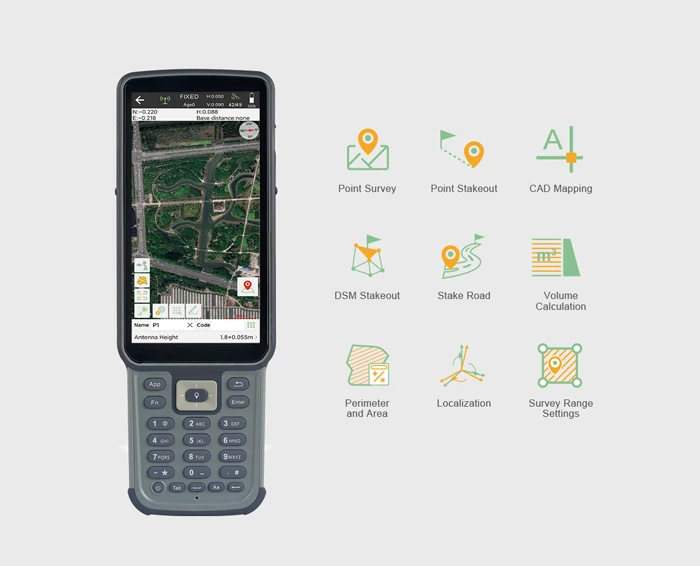

SingularPad Field Surveying Software
SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.
Industries & Applications
Land Surveying
Specifications
| Channels | 1598 |
|---|---|
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
| GPS | L1C/A, L2P, L2C, L5, L1C |
| GLONASS | G1, G2, G3 |
| Galileo | E1, E5a, E5b, E6, E5 AltBoc |
| QZSS | L1C, L2, L5, L1C/A |
| RTK Accuracy | 8mm+1ppm Horizontally 15mm+1ppm Vertically |
| 4G modem | Support |
|---|---|
| UHF modem | Up to 15km with optimal conditions |
| Bluetooth | BT4.0 |
| NFC | Support |
| WiFi | IEEE 802.11 a/b/g/n 2.4G 5G |
| Interface | -1 7-pin lemo port for RS232 -1 SIM card slot for 4G -1 TNC connector for UHF antenna |
| WebUI | Accessible via Wi-Fi |
|---|---|
| Battery | 2×3300mAh, more than 12 hours working time |
| Size | 12.3 × 12.3 × 7.0cm |
| Weight | 834 g, with batteries inside |
| Waterproof & Dustproof | IP67 |
