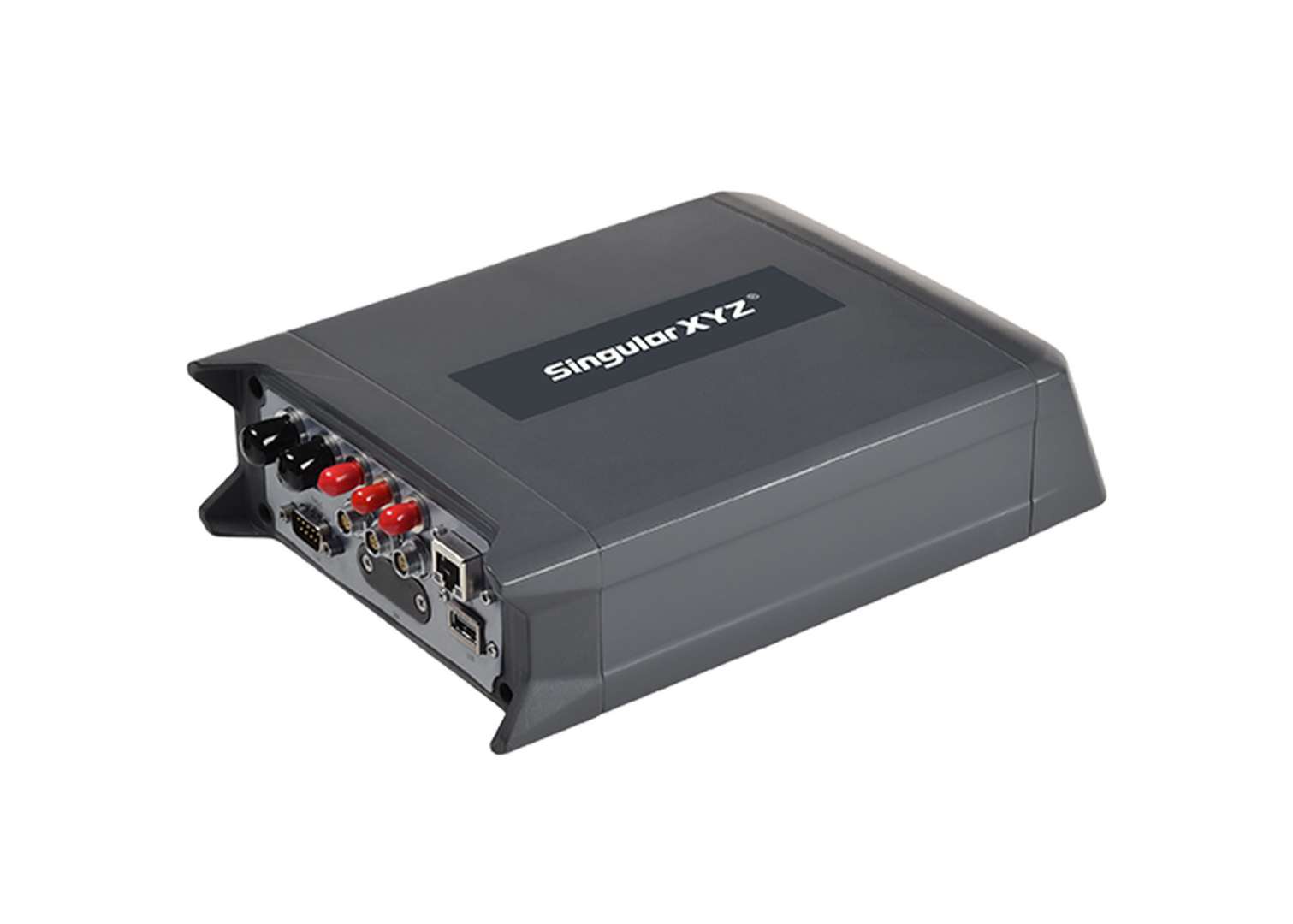

N1 GNSS Receiver
Reliable & Expert Reference Station More| Product number | N1 |
| Quantity unit | pc |
Key Features

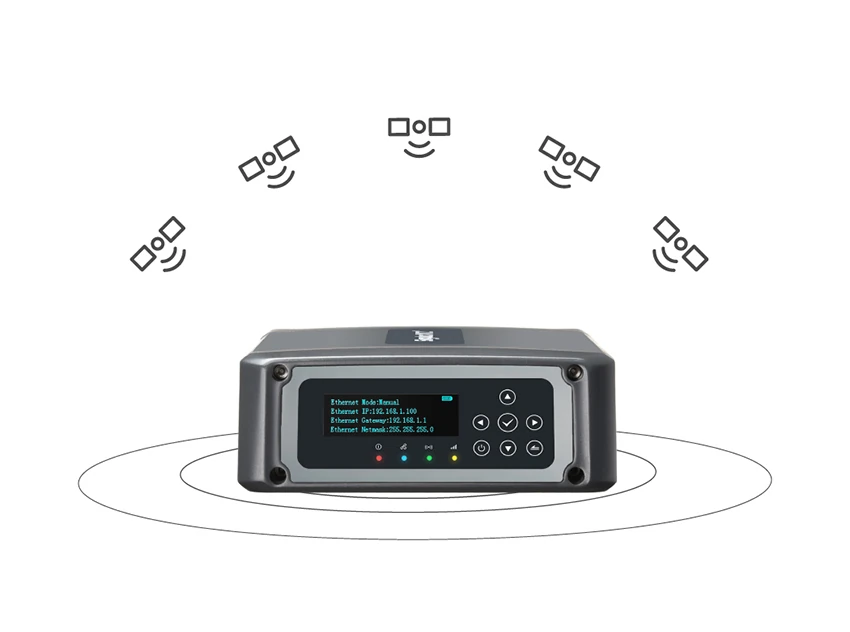

Full-Constellation Tracking
To ensure superior GNSS performance in all application scenarios, N1 is equipped with a high-precision GNSS engine for simultaneously tracking GPS, BDS, GLONASS, Galileo & QZSS, offering high quality and stable GNSS data.
Industry-Standard Communication
Support industry-standard protocols of TCP, Ntrip server, Ntrip caster, etc., formats of NMEA-0183, RTCM v3.x, etc., and abundant interfaces like PPS, Event, oscillator, RS485 and RS232 for enhanced adaptability.
24/7 Long-Term High Stability
Versatile connectivity options of Ethernet/4G, dual power sources of internal battery*/external power and built-in Linux OS of N1 ensure uninterrupted long-term operation with an MTBF over 20,000 hours.
Additional Benefits
2.45" Display Interaction
Designed with a front panel of 2.45" display, status indicators and interaction buttons, N1 makes it more convenient for status and information checking.
Comprehensive Web Interface
Accessed via Ethernet, users can monitor the device status in real-time comprehensively and do configurations like working modes, data transfer settings, firmware upgrade, etc.
Dual Data Storage
Comes with a default 8GB or up to 32GB customizable internal memory, a USB port for external storage and a loop recording function, N1 can fully save and back up your GNSS raw data.
IP67 Rugged Housing
Featured with IP67 protection, aluminum alloy housing and MIL-STD-810 anti-vibration design, the rugged N1 can work stably in any work environment.
Software & Platform
SingularCaster CORS Platform
SingularCaster is designed for your CORS network management, incorporating features such as base station management, online rover management, user subscription management, and system logs.
Industries & Applications
CORS
Specifications
| Channels | 1408 |
|---|---|
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
| GPS | L1C/A, L1C, L2C, L2P(Y), L5 |
| GLONASS | G1, G2, G3 |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1C/A, L1C, L2C, L5 |
| RTK Accuracy | 8mm+1ppm Horizontally 15mm+1ppm Vertically |
| Static Post-processing Accuracy | 2.5mm+0.5ppm Horizontally 5mm+0.5ppm Vertically |
| OS | Linux |
|---|---|
| WebUI | Accessible via Wi-Fi |
| MTBF | > 20000 hours |
| Size | 238*168*62mm, including connectors |
| Weight | 3 kg without battery |
| Waterproof & Dustproof | IP67 |
| OLED Display | 2.45” screen |
| Storage | 8 GB, support loop recording |
| Network Protocol | TCP, MQTT*, Ntrip Server, Ntrip Caster, UDP |
|---|---|
| 4G modem | Support |
| NAT-DDNS | Support |
| WiFi | 802.11 a/b/g/n/ac |
| FTP | Support FTP download and FTP push |
