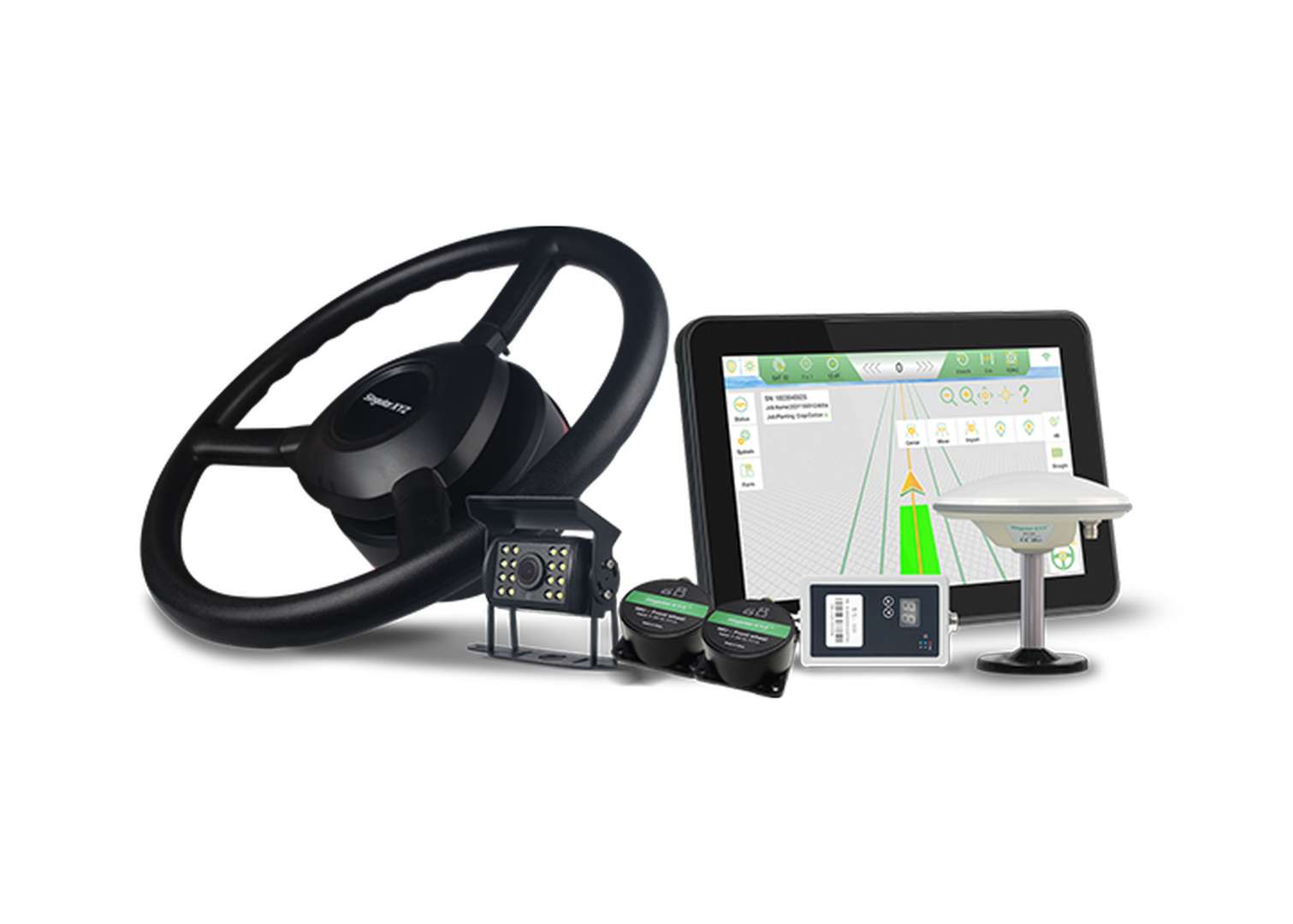

SAgro150 Auto-Steering System
Get Started Easily, Free Your Hands More| Product number | SAgro150 |
| Quantity unit | pc |
Key Features
Higher Yield, Less Cost
With SAgro150 auto-steering system, farmers do not need to concentrate on driving and can work continuously for longer, which means less fatigue and higher efficiency. The 2.5 cm accuracy also maximizes land use and yield while saving resources such as water and fertilizer.
±2.5cm Auto-Steering
Embedded with high-precision full-constellation GNSS module, SAgro150 system provides ±2.5cm auto-steering accuracy, improving your farming efficiency and quality while freeing your hands.

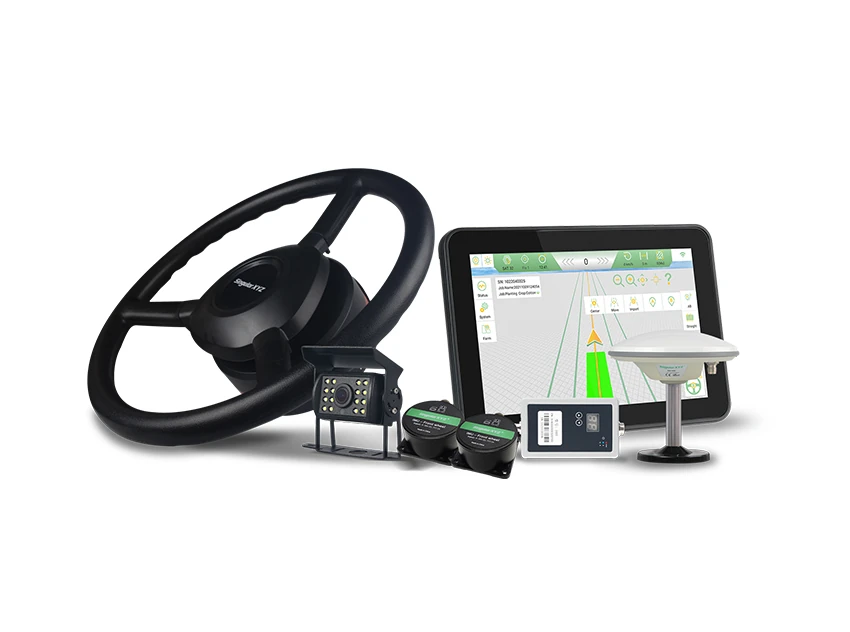

Get Started Easily
Upgraded with single-antenna and dual-gyroscope design, users no longer need to assemble and install the antenna crossbar and angle sensor. SAgro150 system largely reduces the installation difficulty while enhancing the compatibility with different tractors.
Additional Benefits
Abundant Work Modes
For different farm shape, terrain types and working tasks, SAgro150 software supports abundant work modes for your convenience, such as straight line, curve, U-turn, pivot, etc.

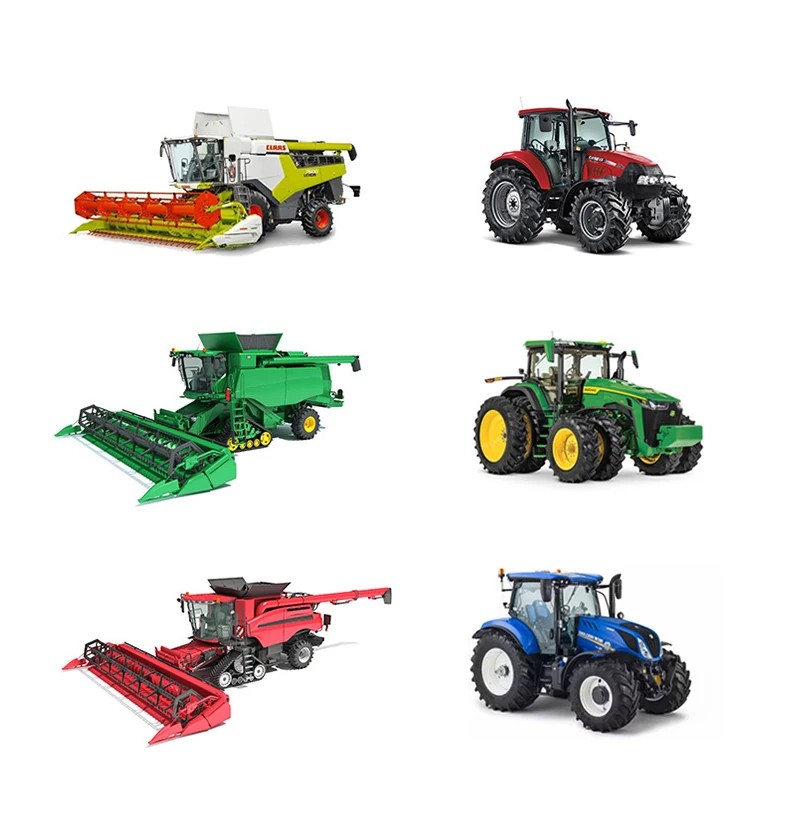

High Compatibility
Offering various spline sleeves for different tractor steering columns and the dual-gyroscope mode for different tractor types, SAgro150 system shows high compatibility with mainstream tractors in the market.
Multiple Task Types
From spring to winter, from harrowing to sowing, spraying, and harvesting, farmers can set different implement types and working modes in SAgro150 to meet your farming needs throughout the year.

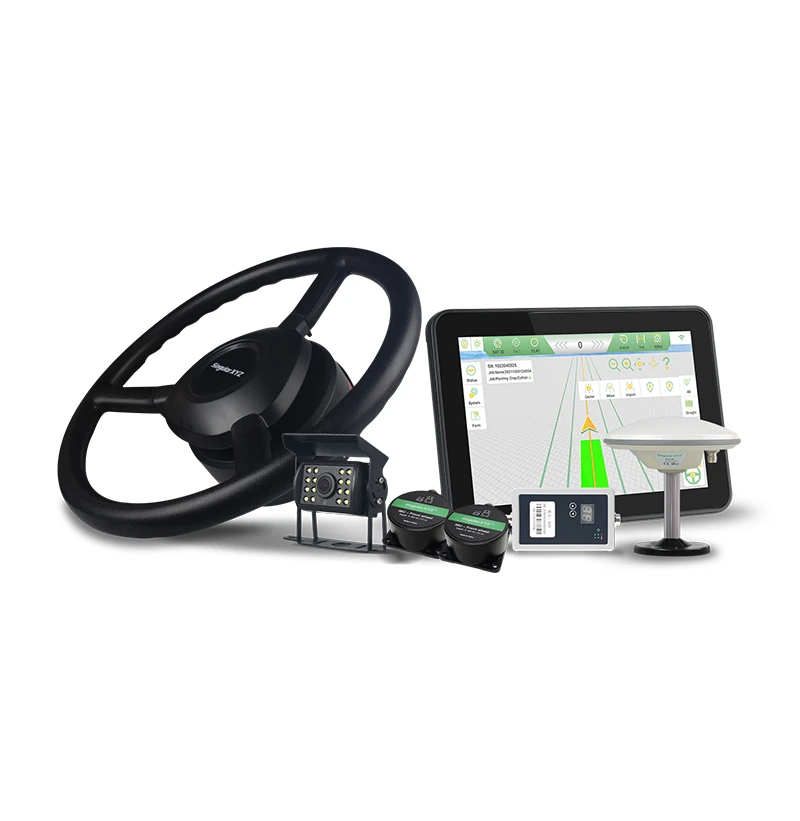

System Components
With T10 GNSS tablet for powerful calculation and operation, SA100 antenna for full-constellation signal receiving, high-torque SEM2 electric motor for sensitive steering control, SAgro150 system can provide you with stable and reliable farming experience.
Smart Farm Management
Smart farm management of SAgro150 system makes your farming more clear and less human errors. Farms and plots management is suitable for large farm owner. Real-time work records can clarify work progress and prevent duplication of work.
Software & Platform
PrecisionAG
PrecisionAG is the autosteer software of SingularXYZ SAgro-Series systems, helping users from system calibration to field auto-steering.
Industries & Applications
Precision Agricuture
Specifications
| Screen | 10.1” touch screen, 1280×800 pixels |
|---|---|
| CPU | Quad-Core 2GHZ |
| Communication | 4G/Bluetooth/WiFi/CAN/USB/ Serial port |
| Memory | 2GB RAM+16GB ROM, upgradable |
| GNSS | GPS/BDS/GAL/GLO/QZSS |
| Rated speed | 100 rpm |
|---|---|
| Rated torque | 9 N*M |
| Dimension | Φ181.5mm*60.4mm |
| IP Rating | IP67 |
