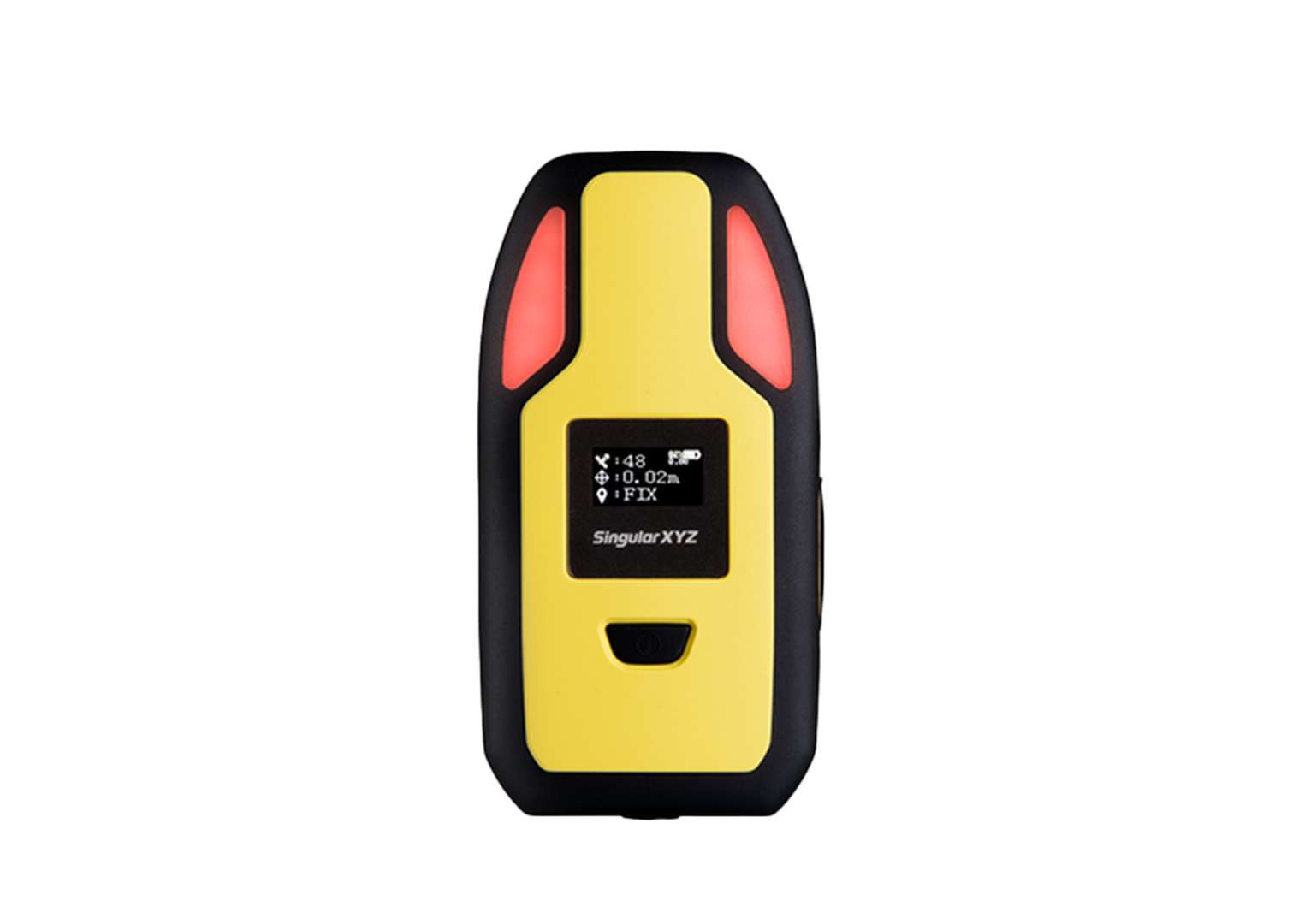

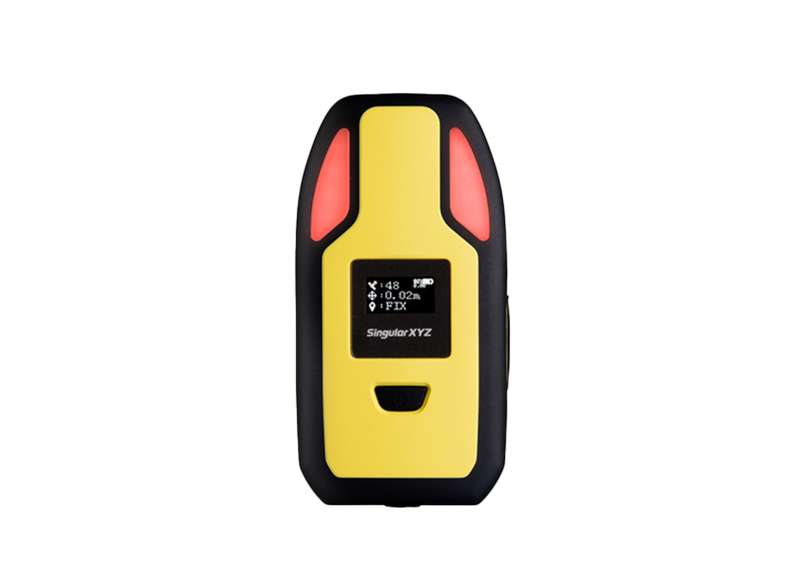

P2 GNSS Receiver
Accurate, Alert, Wearable: Elevating Construction Safety More| Product number | P2 |
| Quantity unit | pc |
Key Features
Advanced Safety Alerts
Prioritizing construction site safety, the P2 GNSS receiver comes with a range of warning features including warning lights, voice alerts, and vibration alerts, notifying users when they entering dangerous areas, enhancing safety during construction operations.
Wearable Design
Designed with user comfort in mind, the P2 features a flexible and wearable design that can be easily worn on the arm, around the neck, or attached to a helmet. This ensures enhanced personnel safety without adding unnecessary burden to construction workers.

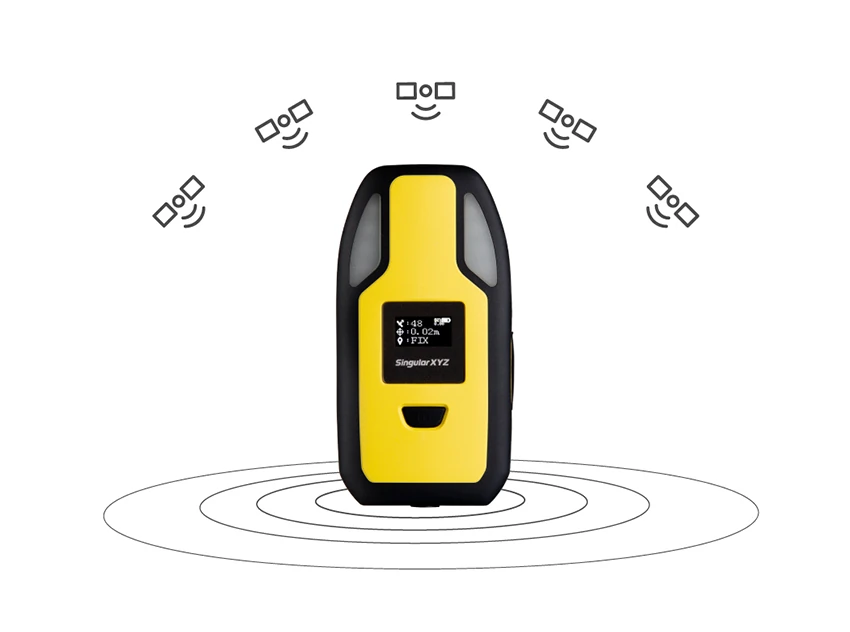

Centimeter-Level Tracking
Considering obstacles in the construction site, P2 GNSS receiver is upgraded with 1408-channel GNSS engine, tracking GPS, BDS, GLONASS, Galileo and QZSS synchronously, providing enhancing consistent and reliable centimeter-level positioning.
Tailored Integration & Deployment Support
SingularXYZ offers SDK and R&D support for functions such as geo-fencing, trajectory recording, and real-time tracking. The P2 supports both cloud-based and on-device geo-fencing for flexible deployment across different applications.
Additional Benefits
Efficient Communication
Featuring a built-in 4G modem for real-time RTK correction data reception and positioning data returning, the P2 also offers Bluetooth connectivity for convenient configuration and a Type-C interface for charging and upgrades.
Guarantee Your Safety
Integrated with geo-fencing capabilities, the P2 can alert operators when approaching hazardous or restricted areas, either through cloud platforms or directly on the device for faster response. Additionally, the always-on warning light provides clear visual indication during night operations, further enhancing on-site safety.
Long Time Battery
Powered by a 4000mAh internal battery and optimized for low power consumption, the P2 can operate continuously for up to 10 hours, ensuring uninterrupted safety throughout the workday.
IP67 Protection
Built to withstand harsh working conditions, the P2 is housed in a rugged IP67 enclosure with sealed plugs, providing protection against accidental drops, shocks, inclement weather, and other potential damages.
Handheld For GIS
Weighing only 199 grams, the P2 GNSS receiver is an ultra-lightweight, perfect handheld device for all your GIS tasks and various positioning related applications.
Software & Platform
SingularThings Cloud Platform
SingularThings is a cloud platform for remote device management, including configuration, upgrades, alert command sending, and real-time status and positioning monitoring. It supports comprehensive customization according to project needs.

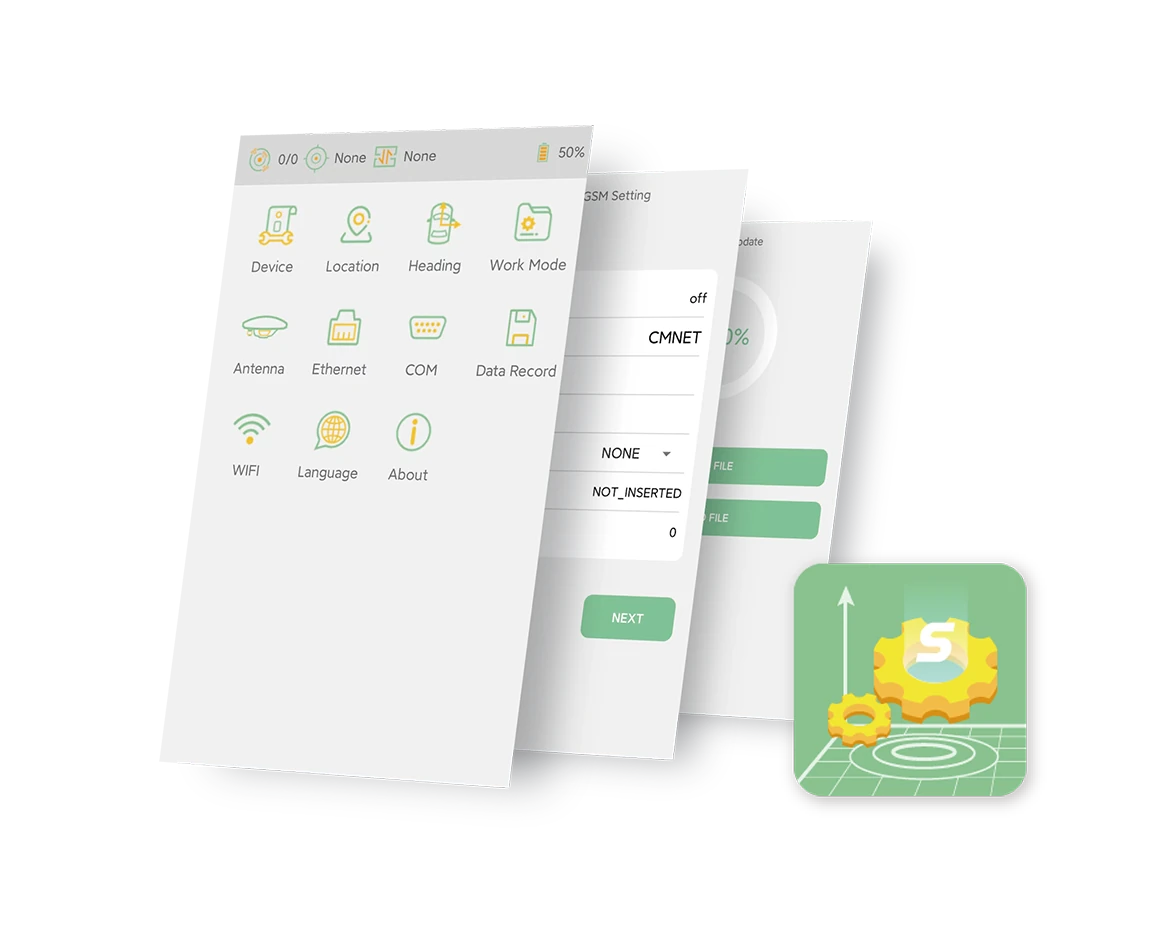

SingularNav Configuration Tool
Connected via Bluetooth, the SingularNav tool allows users to configure the P2 GNSS receiver on-site, check device status, perform firmware upgrades, and more.
Industries & Applications
Personnel Tracking
GIS
Specifications
| Channels | 1408 |
|---|---|
| BDS | B1I, B2I, B3I, B1C, B2a |
| GPS | L1C/A, L2C, L2P, L5 |
| GLONASS | G1, G2 |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1C/A, L2C, L5 |
| RTK Accuracy | 8mm+1ppm Horizontally 15mm+1ppm Vertically |
| Visual Alert | Two bright lights flash to provide a warning signal |
|---|---|
| Auditory Alert | Emits a loud and distinctive sound as an alert |
| Vibration alert | The wearable vibrates vigorously to alert the wearer |
| Battery | 4000mAh |
|---|---|
| Size | 135*70*22mm |
| Weight | 199g |
| Waterproof & Dustproof | IP67 |
| Bluetooth | BT4.2 BR/EDR |
|---|---|
| 4G | Support |
| WiFi | 802.11 b/g/n |
