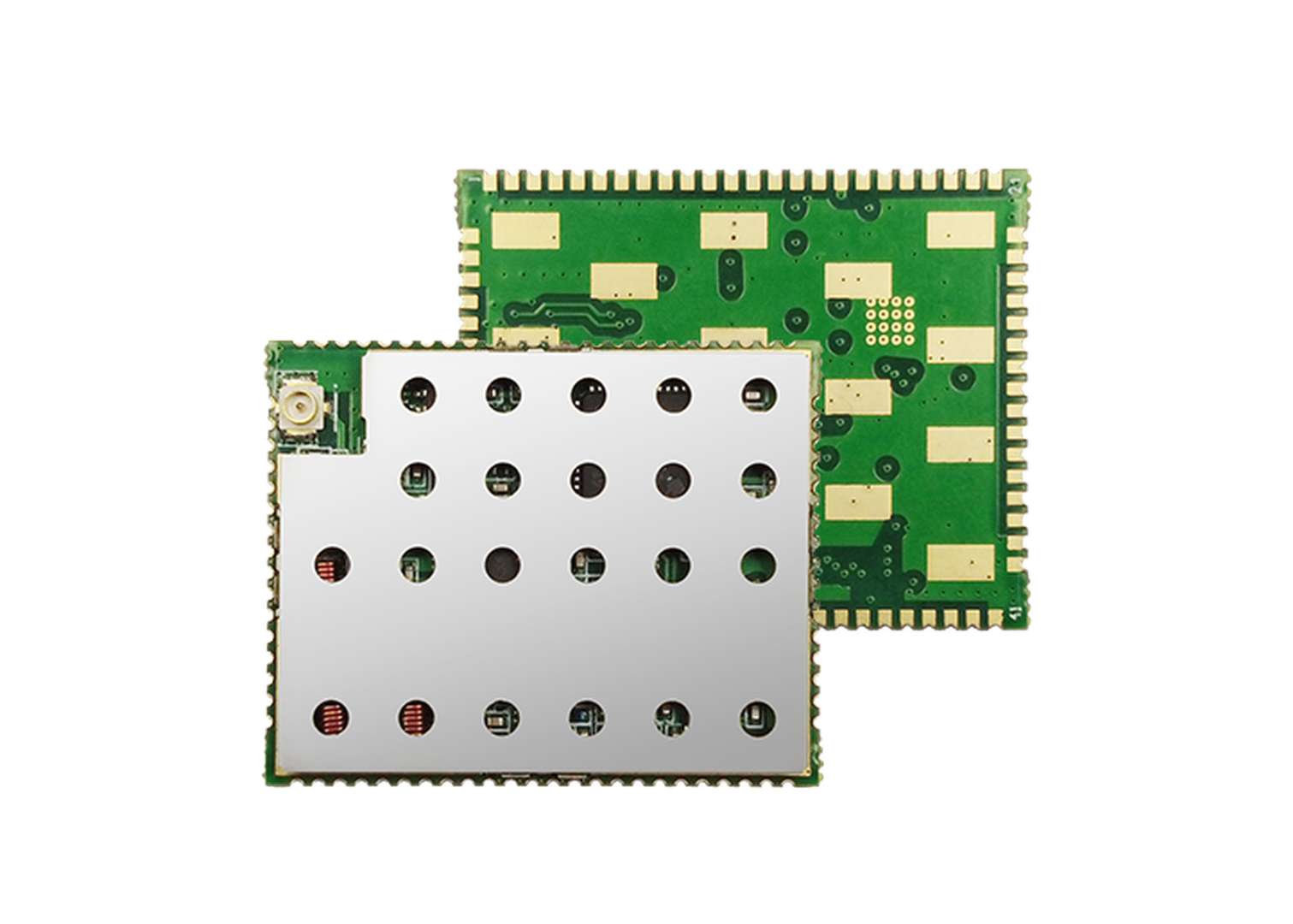

DM20-L Datalink Module
Long Range Wireless Data Communication More| Product number | DM20-L |
| Quantity unit | pc |
Key Features
Long Working Range
Adopted LoRa (Long Range) protocol and realizing receiving and transmitting in one single module, the DM20-L datalink module can reach more than 10km working range in optimal conditions while keeping transmitting power at 2W and receiving power at 0.2W.
Easy Integration
Featured surface-mounted design, 33×26.5×3.5mm small size and low power, the DM20-L datalink module is specially designed for system developers to do various integrations.
Strong Performance
With advantages of stable output power, high receiving sensitivity, low error rate and strong anti-interference ability, the DM20-L shows strong performance for real-time data transmission.
Industries & Applications
Land Surveying
Unmanned Systems
Precision Agriculture
Specifications
| Frequency Range | 410-470 MHz |
|---|---|
| Channel Spacing | 12.5 kHz |
| Work Mode | Half-duplex |
| Frequency Stability | >1.5ppm |
| Protocol Type | LoRa |
| Size | 33×26.5×3.5mm |
|---|---|
| Weight | 5 g |
| I/O Interface | 80-pin SMT, pin pitch 1.27mm |
| Antenna Interface | IPEX male connector |
Downloads
DM20-L Datalink Module (PDF, English)
date:
size: 823.18 KB
