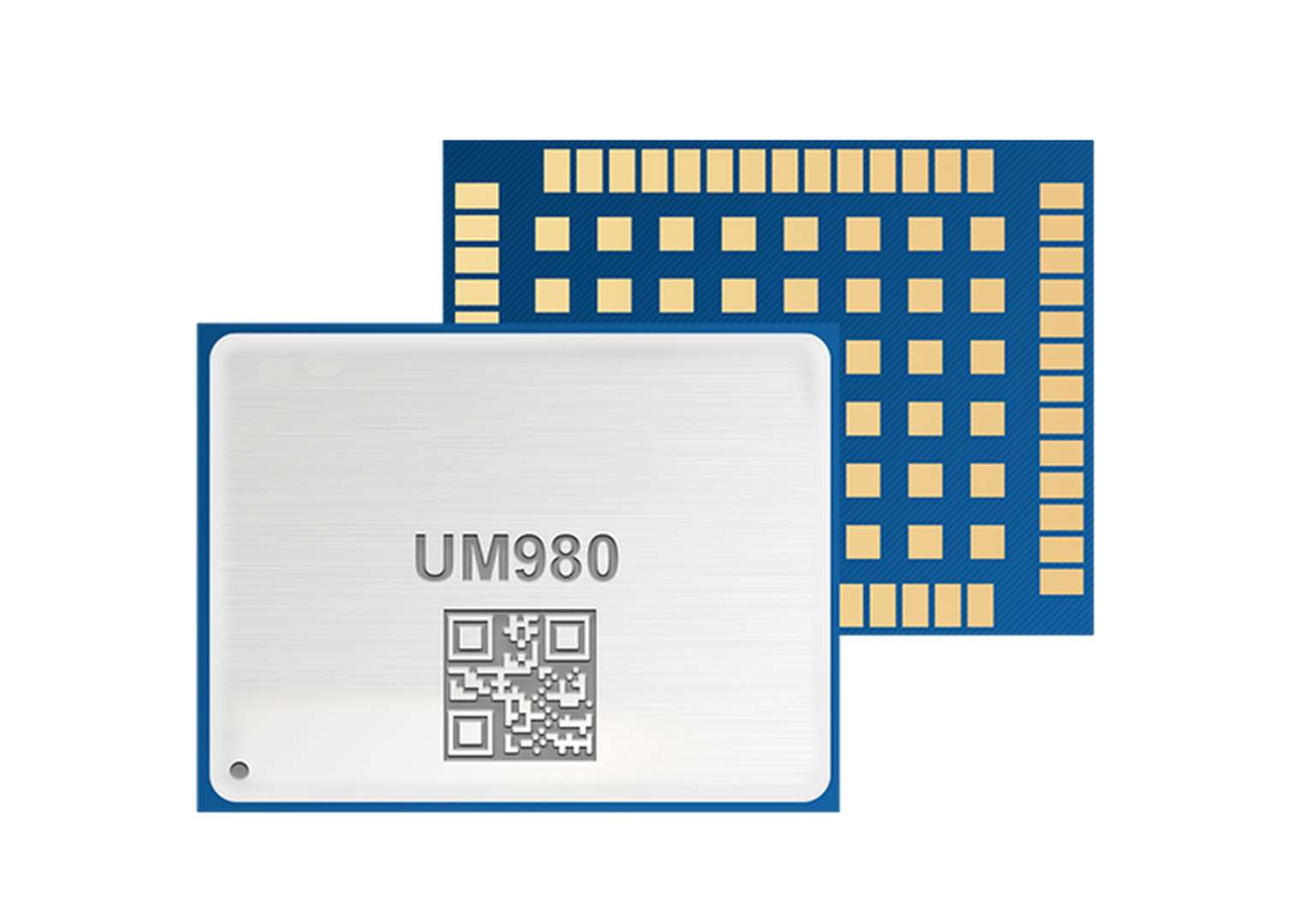

UM980 GNSS Module
For Your Versatile GNSS Integration More| Product number | UM980 |
| Quantity unit | pc |
Key Features

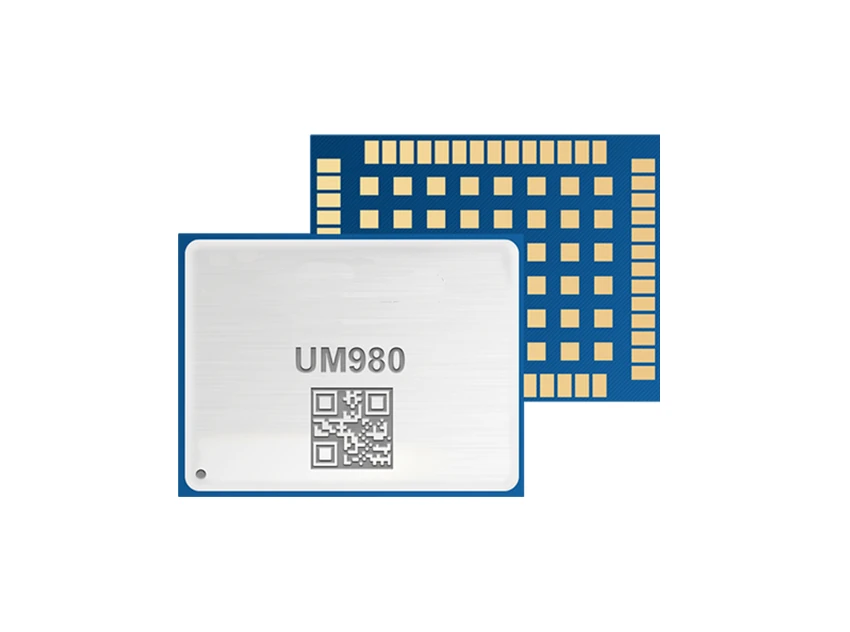

Full-Constellation Tracking
As a full-constellation GNSS module, UM980 tracks GPS, BDS, GLONASS Galileo and QZSS for stable satellite signals. Embedded multi-frequency anti-jamming technology and enhanced RTK engine solution significantly improve RTK performance in complex environments.

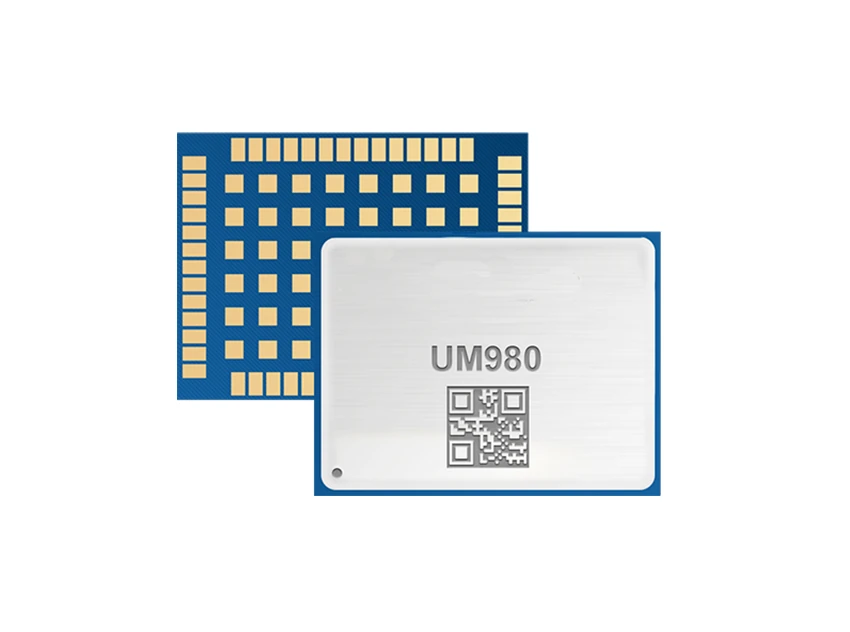

Easy Integration
Measuring only 17x22x2.6mm, with a 54-pin surface mount design, the UM980 can be easily embedded into most devices. In addition, the abundant interfaces of UART, I2C and SPI, industry-standard data formats & protocols provides huge possibilities for user integrations.
Wide Applications
Designed as a functional module provide high accuracy positioning information for horizontal and vertical applications, such as land surveying, GIS, monitoring, UAV, USV, robotics, personnel positioning, machine control, autonomous vehicles, precision agriculture, etc.
Industries & Applications
Land Surveying
Unmanned Systems
Precision Agriculture
Specifications
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
|---|---|
| GPS | L1C/A, L1C, L2C, L2P(Y), L5 |
| GLONASS | G1, G2, G3 |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1C, L2, L5, L1C/A |
| Dimensions | 22 × 17 × 2.6 mm |
|---|---|
| Hardware interface | 54 pin LGA |
| Weight | 1.88 g ±0.03 g |
| Power consumption | 480 Mw (typical) |
| Voltage | +3.0 V~+3.6 V DC |
Downloads
date:
size: 1.5 MB
