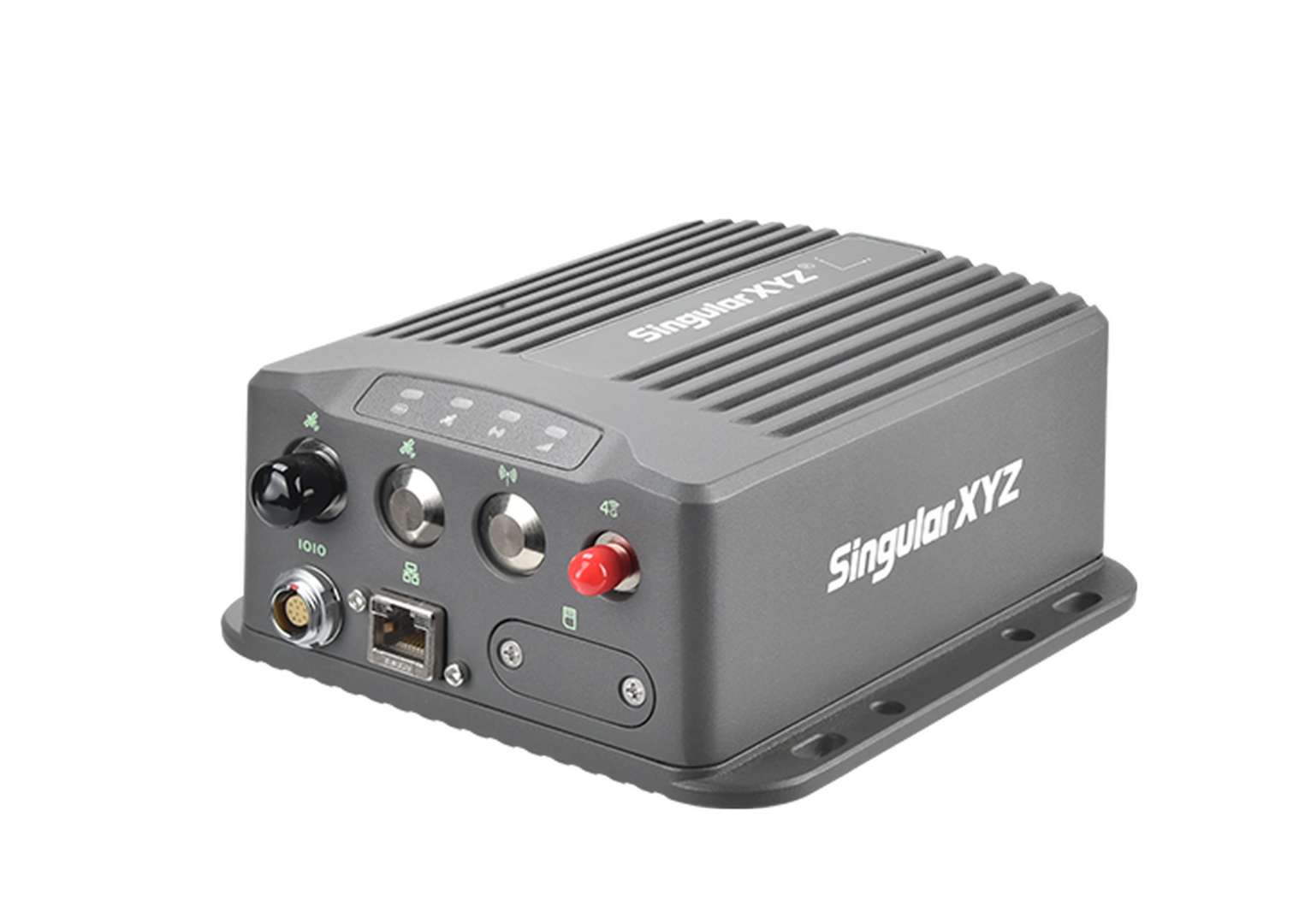

SV100 INS GNSS Receiver
GNSS+INS, Stay Precise When Signals Loss More| Product number | SV100_INS |
| Quantity unit | pc |
Key Features
GNSS + INS Fusion
Combining full-constellation GNSS and inertial navigation data, the SV100 INS uses a tightly coupled algorithm to overcome signal obstructions in urban canyons and forests, achieving centimeter-level accuracy for reliable performance in challenging environments.
Precise When Signals Loss
With a high-performance 6-axis IMU and next-gen fusion engine, the SV100 INS continues to deliver precise position, velocity, and orientation data even when GNSS signals are weak or blocked—such as in tunnels, ports, or under elevated roads.
Built-in Web Interface
A user-friendly and comprehensive web interface allows quick setup, mode selection, and status monitoring. Easily configure and manage your device without extra software.
Additional Benefits
Versatile Communication
Supporting 4G and UHF* for correction data input and RS232, USB, 4G, or LAN for navigation data output, the SV100 INS ensures flexible integration with external systems and various working conditions.
Onboard Data Storage
Equipped with 8GB internal memory (expandable to 32GB), the SV100 INS supports loop recording of GNSS and INS data for reliable, long-duration operation and post-processing flexibility.
Rugged Housing
The IP67-rated, aluminum-alloy housing with MIL-STD-810 anti-vibration design ensures the SV100 INS performs reliably in tough field environments and demanding work conditions.
Industries & Applications
Vehicle Navigation
Specifications
| Channels | 1408 |
|---|---|
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
| GPS | L1C/A, L1C, L2C, L2P(Y), L5 |
| GLONASS | G1, G2, G3 |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1C/A, L1C, L2C, L5 |
| RTK Accuracy | 8mm+1ppm Horizontally 15mm+1ppm Vertically |
| IMU Type | MEMS |
|---|---|
| Gyroscope | - Bias Repeatability: 0.4°/h - Range: ±350°/s - Bias Instability: 1.6°/h (XY), 1.3°/h (Z) - Angle Random Walk: 0.08°/√h (XY), 0.08°/√h (Z) |
| Accelerometer | - Range: ±8g - Bias Repeatability: 15 mg - Bias Instability: 16 μg - Velocity Random Walk: 35 mm/s/√h |
| IMU data update rate | 100Hz |
| Size | 162×142×65 mm, including connectors |
|---|---|
| Weight | 1.05 kg without battery |
| Housing material | Aluminum alloy |
| Waterproof & dustproof | IP67 |
| Storage | 8 GB, support loop recording |
