Key Features
Precise Positioning
Equipped with a high-precision GNSS engine, the S20 offers full-constellation tracking and versatile work modes. When without base stations, it attains 15cm pass-to-pass accuracy in single-point smooth mode, 20cm accuracy in HAS-PPP mode, and 0.6m accuracy in SBAS mode. In RTK mode, it delivers centimeter-level accuracy for precision navigation.
Vehicle Navigation
Designed to be vibration-proof and easy-to-install, it can be easily secured on your vehicle. With precision positioning capability, the S20 provides reliable navigation for your vehicle navigation systems.
All-in-One Design

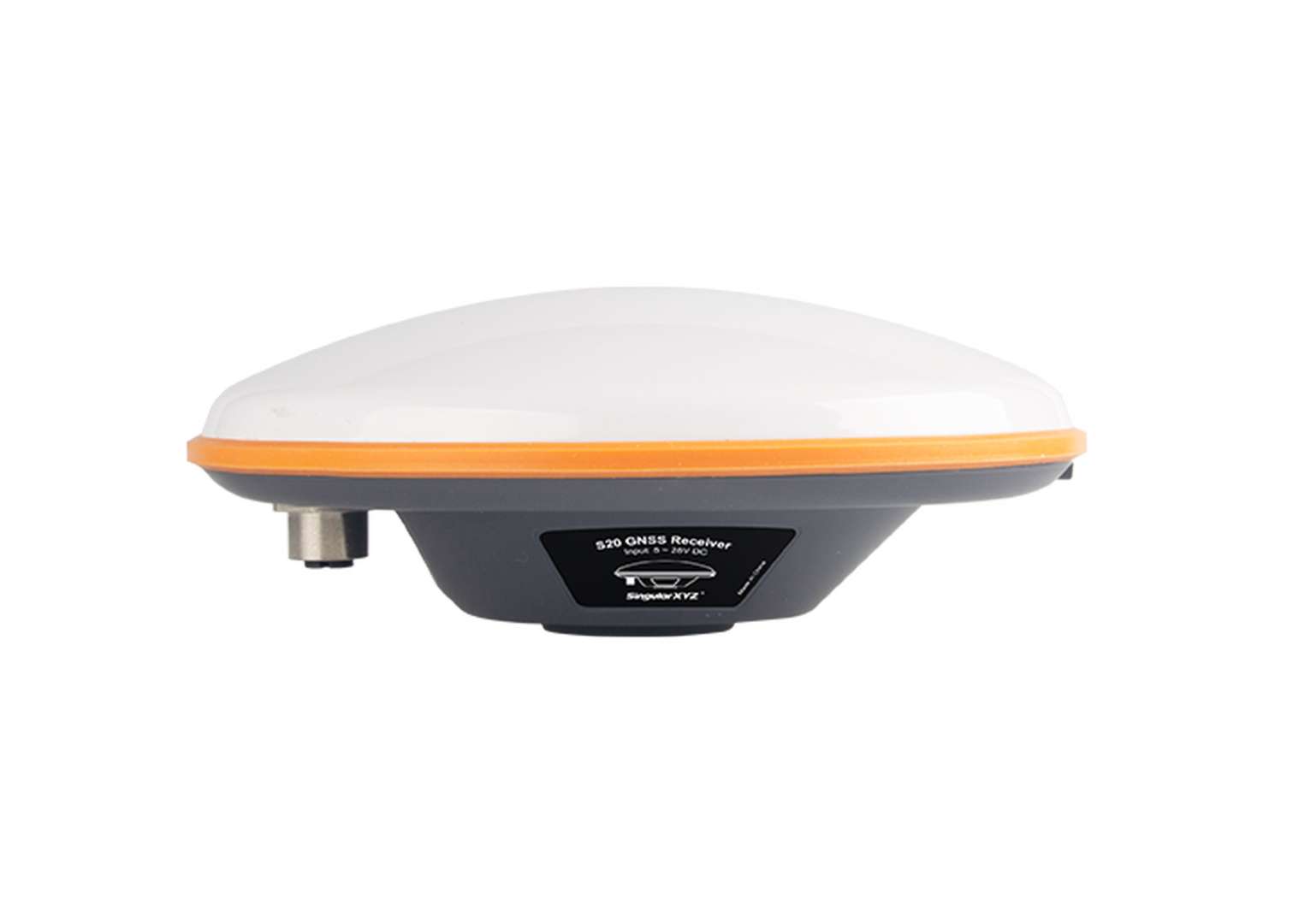

The S20 receiver integrates the GNSS antenna and GNSS module together, largely streamlining the system components and installation. By simply installing the S20 on the top of vehicles, users can easily obtain accurate positioning, which is specially designed for precision agriculture and vehicle navigation.
Additional Benefits
High Compatibility
The S20 boasts broad compatibility with various tractor and vehicle models, requiring no specific vehicle prerequisites. Featuring a standard DB9 serial port and NMEA-0183 message output, it facilitates seamless integration into navigation system development, ensuring high adaptability and ease of use.
Rugged Housing
Taking into account the working environments of users, the S20 is IP67 rated for all-weather field applications. Designed to be vibration-proof and easy-to-install, it can be easily secured on your vehicle systems.
Specifications
| Channels | 1408 |
|---|---|
| BDS | B1I, B2I, B3I, B1C, B2a, B2b |
| GPS | L1C/A, L1C, L2C, L2P(Y), L5 |
| GLONASS | G1, G2, G3 |
| Galileo | E1, E5a, E5b, E6 |
| QZSS | L1C/A, L1C, L2C, L5 |
| SBAS | WAAS, EGNOS, MSAS, GAGAN, SDCM |
| PPP | Galileo HAS, BDS B2b |
| Size | Φ150 mm × 58.4 mm |
|---|---|
| Weight | 424g |
| Interface | - DC2.1 female for power supply - DB9 female for data transmission |
| Waterproof & Dustproof | IP67 |
| Data Output | NMEA-0183 |
